Structural Features

  • Midline dimple serves as a visual reference for arch-wire centering.

  • Stops wire sliding/drifting, maintaining consistent arch form.

  • Available in Round Type (for flexible, initial alignment stages).

  • Available in Rectangular Type (for precise finishing and torque control).

Clinical Advantages

  • Improved wire stability inside brackets or tubes.

  • Better midline control throughout treatment.

  • Enhanced 3D control of tooth movement (especially with rectangular wires).

  • Reduces cheek/soft-tissue irritation by preventing wire migration.

  • Helps maintain correct symmetry of the dental arch.

Treatment Use

  • Round wires: Initial leveling & alignment—gentle, continuous force.

  • Rectangular wires: Mid-to-final stages—torque, tip, and rotation control.

  • Effective with self-ligating systems or low-ligation setups.

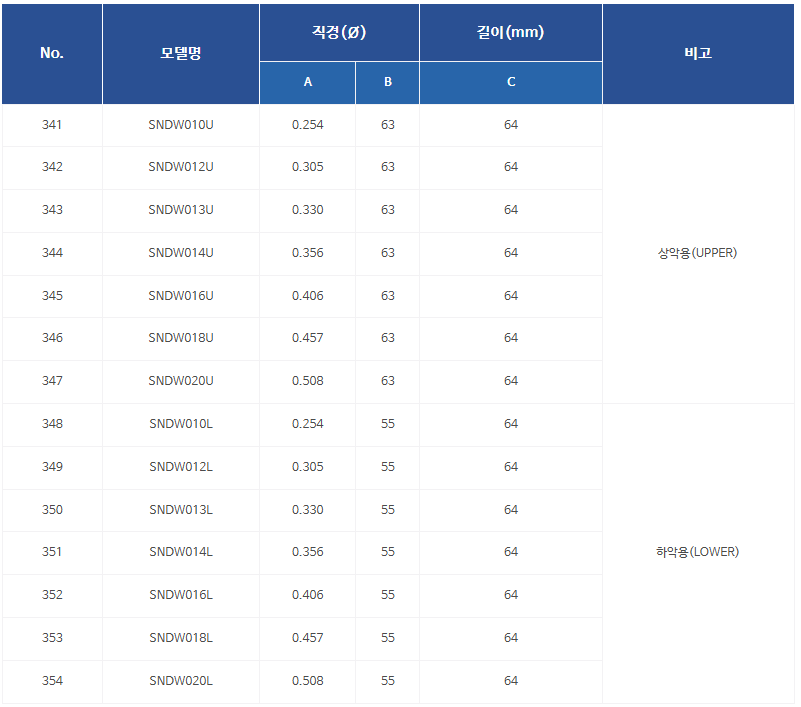

Dimple Arch (Round type)

Specifications

Specification Table
No. Model Name Diameter(Ø) Length(mm) Note
A B C
341SNDW010U0.2546364For Jaw (UPPER)
342SNDW012U0.3056364
343SNDW013U0.336364
344SNDW014U0.3566364
345SNDW016U0.4066364
346SNDW018U0.4576364
347SNDW020U0.5086364
348SNDW010L0.2545564For Jaw (LOWER)
349SNDW012L0.3055564
350SNDW013L0.335564
351SNDW014L0.3565564
352SNDW016L0.4065564
353SNDW018L0.4575564
354SNDW020L0.5085564

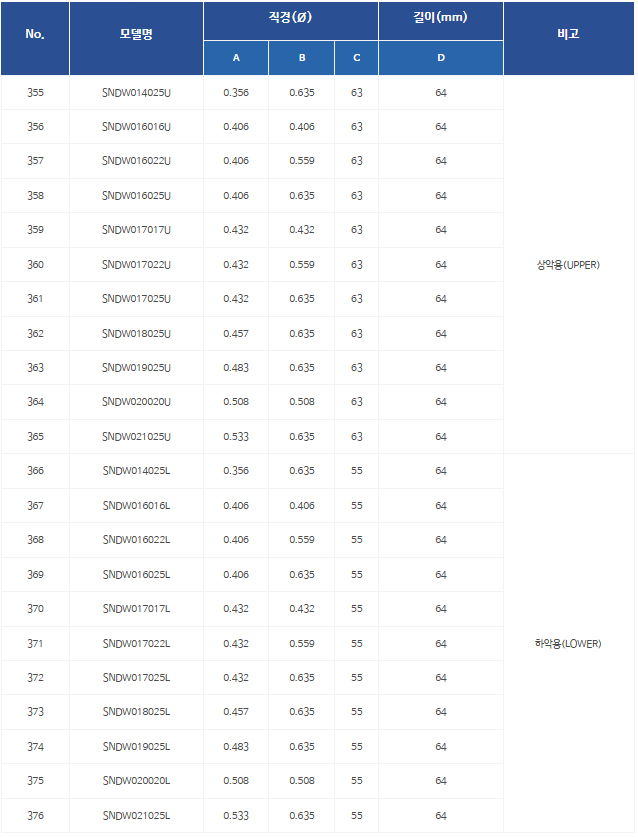

Dimple Arch (Rect type)

Specifications

Specification Table
No. Model Name Diameter (Ø) Length (mm) Notes
A B C D
355SNDW014025U0.3560.6356364For jaw (UPPER)
356SNDW016016U0.4060.4066364
357SNDW016022U0.4060.5596364
358SNDW016025U0.4060.6356364
359SNDW017017U0.4320.4326364
360SNDW017022U0.4320.5596364
361SNDW017025U0.4320.6356364
362SNDW018025U0.4570.6356364
363SNDW019025U0.4830.6356364
364SNDW020020U0.5080.5086364
365SNDW021025U0.5330.6356364
366SNDW014025L0.3560.6355564For jaw(LOWER)
367SNDW016016L0.4060.4065564
368SNDW016022L0.4060.5595564
369SNDW016025L0.4060.6355564
370SNDW017017L0.4320.4325564
371SNDW017022L0.4320.5595564
372SNDW017025L0.4320.6355564
373SNDW018025L0.4570.6355564
374SNDW019025L0.4830.6355564
375SNDW020020L0.5080.5085564
376SNDW021025L0.5330.6355564

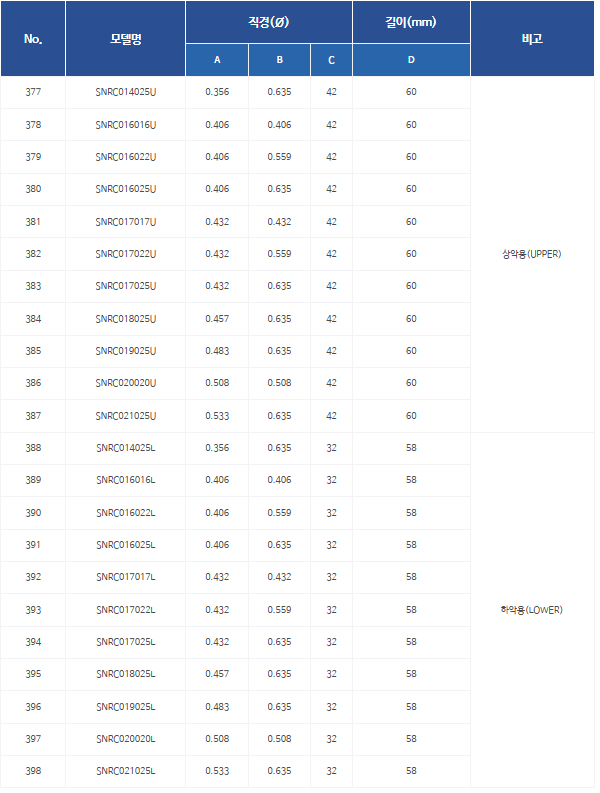

Reverse Curve

Specifications

Specification Table
No. Model Name Diameter (Ø) Length (mm) Notes
A B C D
377SNRC014025U0.3560.6354260For Jaw (UPPER)
378SNRC016016U0.4060.4064260
379SNRC016022U0.4060.5594260
380SNRC016025U0.4060.6354260
381SNRC017017U0.4320.4324260
382SNRC017022U0.4320.5594260
383SNRC017025U0.4320.6354260
384SNRC018025U0.4570.6354260
385SNRC019025U0.4830.6354260
386SNRC020020U0.5080.5084260
387SNRC021025U0.5330.6354260
388SNRC014025L0.3560.6353258For Jaw(LOWER)
389SNRC016016L0.4060.4063258
390SNRC016022L0.4060.5593258
391SNRC016025L0.4060.6353258
392SNRC017017L0.4320.4323258
393SNRC017022L0.4320.5593258
394SNRC017025L0.4320.6353258
395SNRC018025L0.4570.6353258
396SNRC019025L0.4830.6353258
397SNRC020020L0.5080.5083258
398SNRC021025L0.5330.6353258
