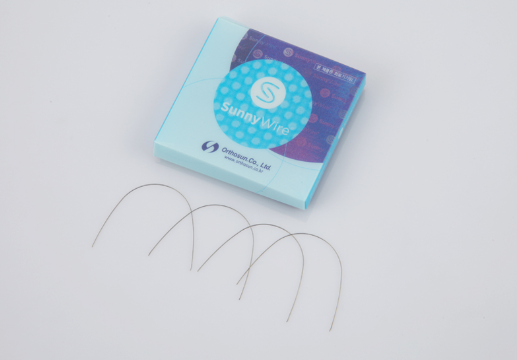

This is a round‑section arch wire used in orthodontic braces to guide and correct tooth alignment. Round‑type wires are typically used in the initial stages of orthodontic treatment (leveling and aligning) because they are more flexible and deliver gentle, continuous forces to gradually move teeth.

  • High elasticity / springiness — the wire flexes easily and returns to its original shape, making it ideal for gently nudging teeth into position without excessive force.

  • Low stiffness / gentle force — because of its round cross‑section and often the use of flexible alloys (like Ni‑Ti), it applies lighter, more continuous force, which improves patient comfort and reduces risk of bracket detachment.

  • Reduced friction with brackets — smooth finish and round cross‑section help the wire slide easily through bracket slots, facilitating easier tooth movement and reducing stress on attachments.

  • Good for initial alignment and leveling — ideal for early treatment phases when teeth are misaligned or crowded; later stages often use stiffer rectangular or square wires for finer control.

  • Versatile sizes — round arch wires often come in multiple diameters (e.g. 0.012″, 0.014″, 0.016″, 0.018″, 0.020″) to adjust the level of force and flexibility depending on treatment needs.

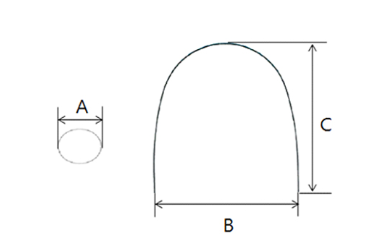

T form

Specifications

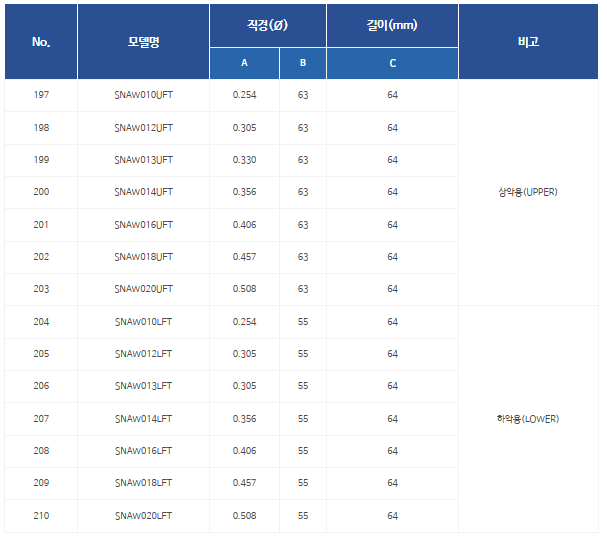

Specification Table
No. Model Name Diameter (Ø) Length (mm) Notes
A B C
197SNAW010UFT0.2546364For Jaw(UPPER)
198SNAW012UFT0.3056364
199SNAW013UFT0.336364
200SNAW014UFT0.3566364
201SNAW016UFT0.4066364
202SNAW018UFT0.4576364
203SNAW020UFT0.5086364
204SNAW010LFT0.2545564For Jaw (LOWER)
205SNAW012LFT0.3055564
206SNAW013LFT0.3055564
207SNAW014LFT0.3565564
208SNAW016LFT0.4065564
209SNAW018LFT0.4575564
210SNAW020LFT0.5085564

E form

Specifications

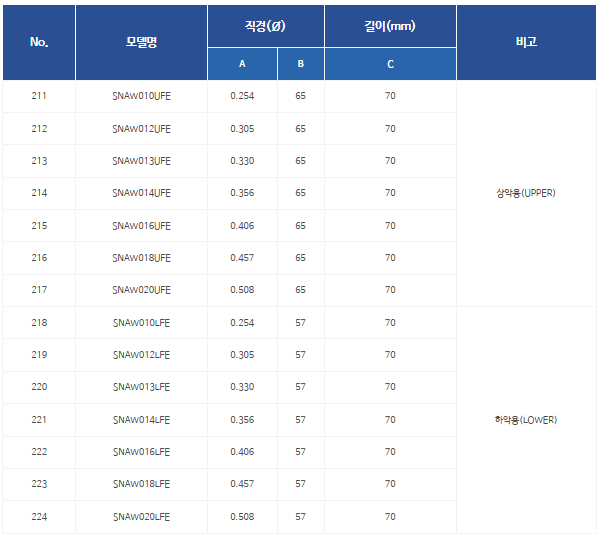

Specification Table
No. Model Name Diameter (Ø) Length (mm) Notes
A B C
211SNAW010UFE0.2546570For Jaw (UPPER)
212SNAW012UFE0.3056570
213SNAW013UFE0.336570
214SNAW014UFE0.3566570
215SNAW016UFE0.4066570
216SNAW018UFE0.4576570
217SNAW020UFE0.5086570
218SNAW010LFE0.2545770For Jaw(LOWER)
219SNAW012LFE0.3055770
220SNAW013LFE0.335770
221SNAW014LFE0.3565770
222SNAW016LFE0.4065770
223SNAW018LFE0.4575770
224SNAW020LFE0.5085770

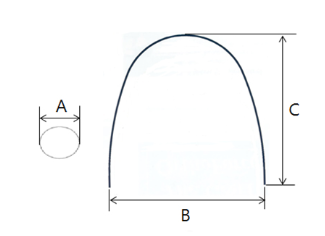

N form

Specifications

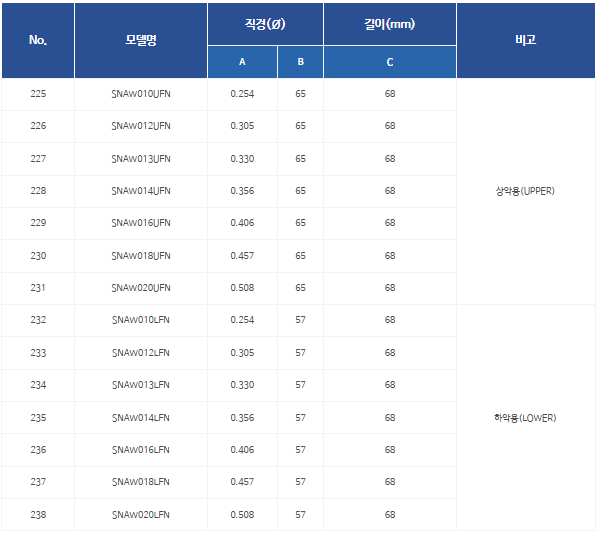

Specification Table
No. Model Name Diameter (Ø) Length (mm) Notes
A B C
225SNAW010UFN0.2546568For Jaw (UPPER)
226SNAW012UFN0.3056568
227SNAW013UFN0.336568
228SNAW014UFN0.3566568
229SNAW016UFN0.4066568
230SNAW018UFN0.4576568
231SNAW020UFN0.5086568
232SNAW010LFN0.2545768For Jaw (LOWER)
233SNAW012LFN0.3055768
234SNAW013LFN0.335768
235SNAW014LFN0.3565768
236SNAW016LFN0.4065768
237SNAW018LFN0.4575768
238SNAW020LFN0.5085768

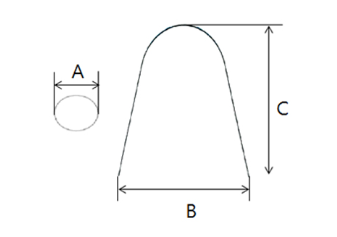

S form

Specifications

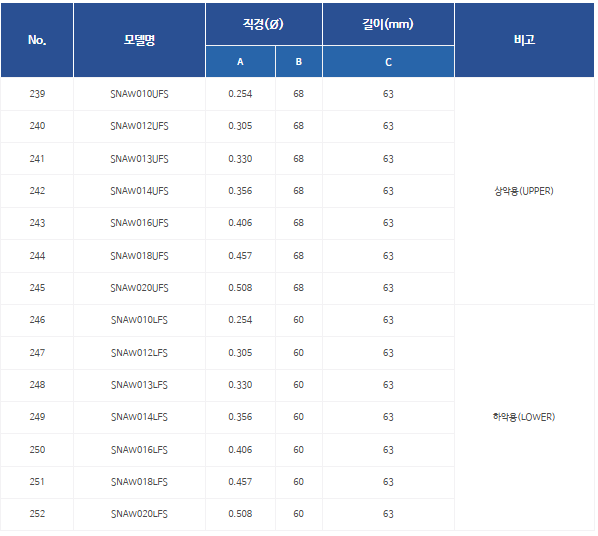

Specification Table
No. Model Name Diameter (Ø) Length (mm) Notes
A B C
239SNAW010UFS0.2546863For Jaw (UPPER)
240SNAW012UFS0.3056863
241SNAW013UFS0.336863
242SNAW014UFS0.3566863
243SNAW016UFS0.4066863
244SNAW018UFS0.4576863
245SNAW020UFS0.5086863
246SNAW010LFS0.2546063For Jaw (LOWER)
247SNAW012LFS0.3056063
248SNAW013LFS0.336063
249SNAW014LFS0.3566063
250SNAW016LFS0.4066063
251SNAW018LFS0.4576063
252SNAW020LFS0.5086063
