Rectangular arch‑wires are used in orthodontic treatment to exert controlled forces that move teeth. Compared with round arch‑wires (used early in treatment), rectangular wires engage more fully with bracket slots and allow refined control over tooth position and orientation

  • Fits snugly into rectangular bracket slots → provides better control over tipping, rotation, and torque of teeth.

  • High stiffness and rigidity → capable of delivering stronger, more stable forces (useful for root movement, space closure, and finishing stages).

  • Enables movement in all three dimensions (vertical, bucco‑lingual, mesio‑distal) when properly bent and adjusted.

  • Good for final alignment and detailing — bringing teeth into precise final positions once major alignment is achieved.

  • Compatible with common arch‑wire materials (e.g. stainless steel, nickel‑titanium, beta‑titanium), allowing flexibility in choosing based on treatment needs.

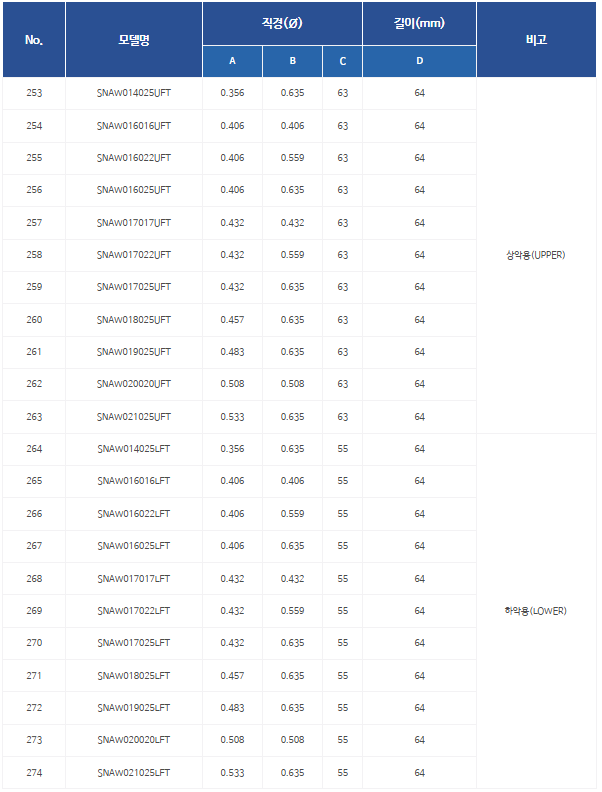

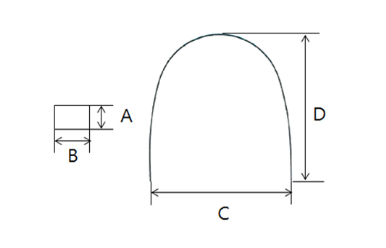

T form

Specifications

Specification Table
No. Model Name Diameter (Ø) Length (mm) Notes
A B C D
253SNAW014025UFT0.3560.6356364For Jaw (UPPER)
254SNAW016016UFT0.4060.4066364
255SNAW016022UFT0.4060.5596364
256SNAW016025UFT0.4060.6356364
257SNAW017017UFT0.4320.4326364
258SNAW017022UFT0.4320.5596364
259SNAW017025UFT0.4320.6356364
260SNAW018025UFT0.4570.6356364
261SNAW019025UFT0.4830.6356364
262SNAW020020UFT0.5080.5086364
263SNAW021025UFT0.5330.6356364
264SNAW014025LFT0.3560.6355564For Jaw(LOWER)
265SNAW016016LFT0.4060.4065564
266SNAW016022LFT0.4060.5595564
267SNAW016025LFT0.4060.6355564
268SNAW017017LFT0.4320.4325564
269SNAW017022LFT0.4320.5595564
270SNAW017025LFT0.4320.6355564
271SNAW018025LFT0.4570.6355564
272SNAW019025LFT0.4830.6355564
273SNAW020020LFT0.5080.5085564
274SNAW021025LFT0.5330.6355564

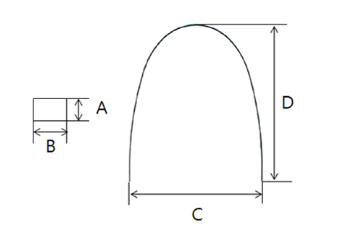

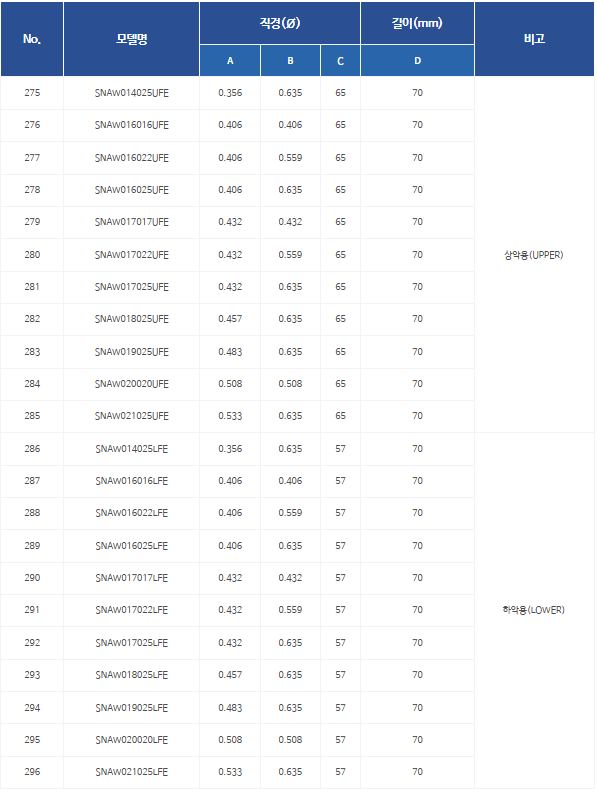

E form

Specifications

Specification Table
No. Model Name Diameter (Ø) Length (mm) Notes
A B C D
275SNAW014025UFE0.3560.6356570For Jaw (UPPER)
276SNAW016016UFE0.4060.4066570
277SNAW016022UFE0.4060.5596570
278SNAW016025UFE0.4060.6356570
279SNAW017017UFE0.4320.4326570
280SNAW017022UFE0.4320.5596570
281SNAW017025UFE0.4320.6356570
282SNAW018025UFE0.4570.6356570
283SNAW019025UFE0.4830.6356570
284SNAW020020UFE0.5080.5086570
285SNAW021025UFE0.5330.6356570
286SNAW014025LFE0.3560.6355770For Jaw (LOWER)
287SNAW016016LFE0.4060.4065770
288SNAW016022LFE0.4060.5595770
289SNAW016025LFE0.4060.6355770
290SNAW017017LFE0.4320.4325770
291SNAW017022LFE0.4320.5595770
292SNAW017025LFE0.4320.6355770
293SNAW018025LFE0.4570.6355770
294SNAW019025LFE0.4830.6355770
295SNAW020020LFE0.5080.5085770
296SNAW021025LFE0.5330.6355770

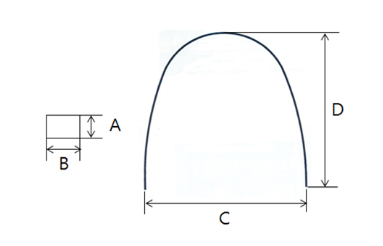

N form

Specifications

Specification Table
No. Model Name Diameter (Ø) Length (mm) Notes
A B C D
297SNAW014025UFN0.3560.6356568For Jaw (UPPER)
298SNAW016016UFN0.4060.4066568
299SNAW016022UFN0.4060.5596568
300SNAW016025UFN0.4060.6356568
301SNAW017017UFN0.4320.4326568
302SNAW017022UFN0.4320.5596568
303SNAW017025UFN0.4320.6356568
304SNAW018025UFN0.4570.63568
305SNAW019025UFN0.4830.6356568
306SNAW020020UFN0.5080.5086568
307SNAW021025UFN0.5330.6356568
308SNAW014025LFN0.3560.6355768For Jaw (LOWER)
309SNAW016016LFN0.4060.4065768
310SNAW016022LFN0.4060.5595768
311SNAW016025LFN0.4060.6355768
312SNAW017017LFN0.4320.4325768
313SNAW017022LFN0.4320.5595768
314SNAW017025LFN0.4320.6355768
315SNAW018025LFN0.4570.6355768
316SNAW019025LFN0.4830.6355768
317SNAW020020LFN0.5080.5085768
318SNAW021025LFN0.5330.6355768

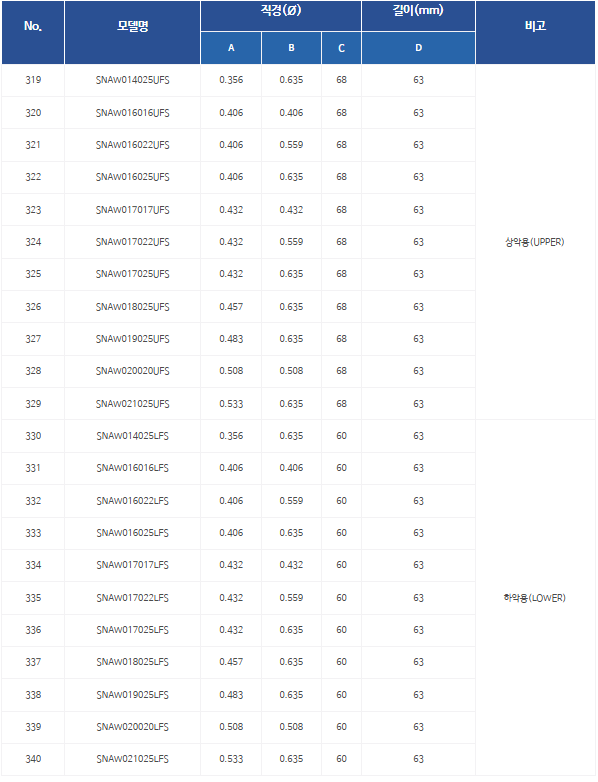

S form

Specifications

Specification Table
No. Model Name Diameter (Ø) Length (mm) Notes
A B C D
319SNAW014025UFS0.3560.6356863For Jaw (UPPER)
320SNAW016016UFS0.4060.4066863
321SNAW016022UFS0.4060.5596863
322SNAW016025UFS0.4060.6356863
323SNAW017017UFS0.4320.4326863
324SNAW017022UFS0.4320.5596863
325SNAW017025UFS0.4320.6356863
326SNAW018025UFS0.4570.6356863
327SNAW019025UFS0.4830.6356863
328SNAW020020UFS0.5080.5086863
329SNAW021025UFS0.5330.6356863
330SNAW014025LFS0.3560.6356063For Jaw (LOWER)
331SNAW016016LFS0.4060.4066063
332SNAW016022LFS0.4060.5596063
333SNAW016025LFS0.4060.6356063
334SNAW017017LFS0.4320.4326063
335SNAW017022LFS0.4320.5596063
336SNAW017025LFS0.4320.6356063
337SNAW018025LFS0.4570.6356063
338SNAW019025LFS0.4830.6356063
339SNAW020020LFS0.5080.5086063
340SNAW021025LFS0.5330.6356063
