The BT Circle Wire is a “roll‑type” orthodontic wire: instead of pre‑bent archwires, the wire comes on a coil/roll so the clinician can cut and shape as needed per patient.In general, such “circle formed / roll” wires are often made from nickel‑titanium (Ni‑Ti) alloy (or similar), giving them flexibility and spring‑back (shape memory / elasticity) useful for orthodontic tooth movement. As an archwire, the BT Circle Wire plays the role of guiding tooth movement — transmitting force through the brackets to move teeth and align the dental arch.

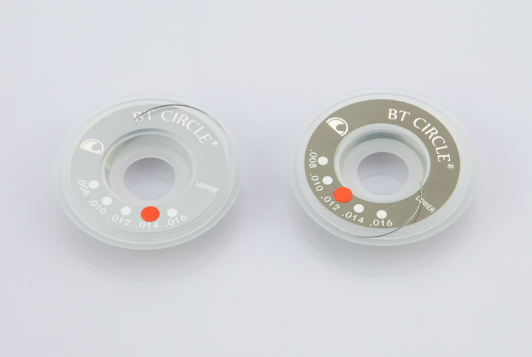

BT CIRCLE WIRE – ROLL TYPE
-
-
Roll / coil form → customizable length & shape: Because it’s supplied in rolled/coiled form, the orthodontist can cut exactly the length needed for a patient’s arch and bend or shape as required. This allows flexibility and reduces waste compared to pre-shaped archwires.
-
Elasticity & gentle force (if Ni‑Ti alloy): If the wire is Ni‑Ti, it provides continuous, gentle, and consistent force over time, ideal for the initial alignment and leveling phases of orthodontic treatment.
-
Economical / versatile for varying cases: Because of roll‑type and cut-to-length flexibility, a single spool can serve multiple patients or varying arch sizes, which may be more cost‑efficient for dental clinics.
-
Reduces need for frequent replacement / rebending: The “memory” or superelastic property (if present) helps the wire resume correct shape and continue applying corrective forces, reducing the need for frequent adjustments.
-

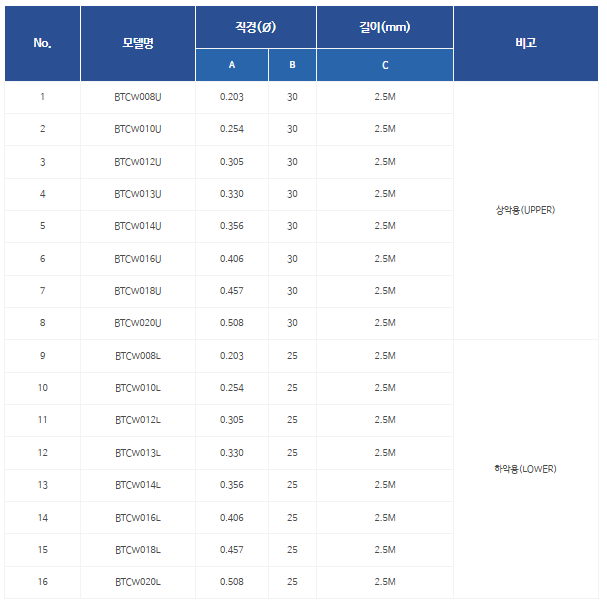

Specfications

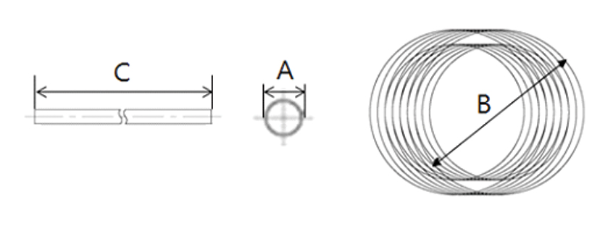

| No. | Model Name | Diameter (Ø) A | Diameter (Ø) B | Length (mm) C | Remarks |
|---|---|---|---|---|---|
| 1 | BTCW008U | 0.203 | 30 | 2.5M | For Jaw (UPPER) |
| 2 | BTCW010U | 0.254 | 30 | 2.5M | For Jaw(UPPER) |
| 3 | BTCW012U | 0.305 | 30 | 2.5M | For Jaw(UPPER) |
| 4 | BTCW013U | 0.33 | 30 | 2.5M | For Jaw(UPPER) |
| 5 | BTCW014U | 0.356 | 30 | 2.5M | For Jaw(UPPER) |
| 6 | BTCW016U | 0.406 | 30 | 2.5M | For Jaw(UPPER) |
| 7 | BTCW018U | 0.457 | 30 | 2.5M | For Jaw(UPPER) |
| 8 | BTCW020U | 0.508 | 30 | 2.5M | For Jaw(UPPER) |
| 9 | BTCW008L | 0.203 | 25 | 2.5M | For Jaw(LOWER) |
| 10 | BTCW010L | 0.254 | 25 | 2.5M | For Jaw(LOWER) |
| 11 | BTCW012L | 0.305 | 25 | 2.5M | For Jaw(LOWER) |
| 12 | BTCW013L | 0.33 | 25 | 2.5M | For Jaw(LOWER) |
| 13 | BTCW014L | 0.356 | 25 | 2.5M | For Jaw(LOWER) |
| 14 | BTCW016L | 0.406 | 25 | 2.5M | For Jaw(LOWER) |
| 15 | BTCW018L | 0.457 | 25 | 2.5M | For Jaw(LOWER) |
| 16 | BTCW020L | 0.508 | 25 | 2.5M | For Jaw(LOWER) |

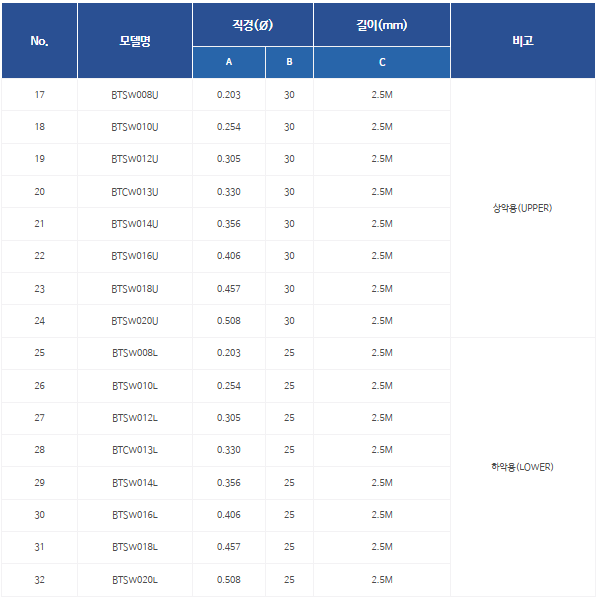

Specifications
| No. | Model Name | Diameter (Ø) A | Diameter (Ø) B | Length (mm) C | Remarks |
|---|---|---|---|---|---|
| 17 | BTSW008U | 0.203 | 30 | 2.5M | For Jaw (UPPER) |
| 18 | BTSW010U | 0.254 | 30 | 2.5M | For Jaw(UPPER) |
| 19 | BTSW012U | 0.305 | 30 | 2.5M | For Jaw(UPPER) |
| 20 | BTCW013U | 0.33 | 30 | 2.5M | For Jaw(UPPER) |
| 21 | BTSW014U | 0.356 | 30 | 2.5M | For Jaw(UPPER) |
| 22 | BTSW016U | 0.406 | 30 | 2.5M | For Jaw(UPPER) |
| 23 | BTSW018U | 0.457 | 30 | 2.5M | For Jaw(UPPER) |
| 24 | BTSW020U | 0.508 | 30 | 2.5M | For Jaw(UPPER) |
| 25 | BTSW008L | 0.203 | 25 | 2.5M | For Jaw(LOWER) |
| 26 | BTSW010L | 0.254 | 25 | 2.5M | For Jaw(LOWER) |
| 27 | BTSW012L | 0.305 | 25 | 2.5M | For Jaw(LOWER) |
| 28 | BTCW013L | 0.33 | 25 | 2.5M | For Jaw(LOWER) |
| 29 | BTSW014L | 0.356 | 25 | 2.5M | For Jaw(LOWER) |
| 30 | BTSW016L | 0.406 | 25 | 2.5M | For Jaw(LOWER) |
| 31 | BTSW018L | 0.457 | 25 | 2.5M | For Jaw(LOWER) |
| 32 | BTSW020L | 0.508 | 25 | 2.5M | For Jaw(LOWER) |
