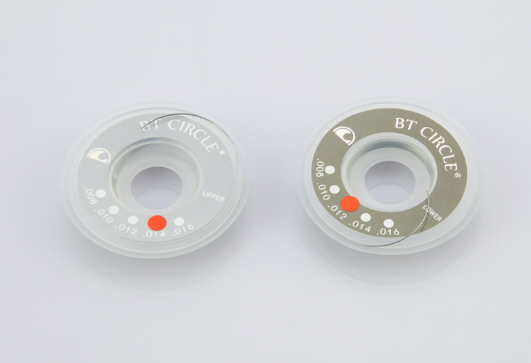

BT Circle Wire” is an orthodontic arch wire used in braces systems. As an arch wire, its role is to conform to the dental arch and deliver controlled force to move and align teeth.

  • Preformed / Roll‑type Wire: The product is offered in multiple sizes (e.g. 0.008, 0.010, 0.012, 0.014, 0.016) and in a “roll type,” making it easier to cut and adjust to the length/shape needed for a patient’s dental arch.

  • M‑Arch Configuration: The “M‑Arch” design refers to an archwire shaped with an exaggerated “curve of Spee” plus specific bends (molar contraction bends). This shape helps create targeted biomechanical force systems for tooth movement.

  • Versatility: Because of size and shape options, BT Circle Wire can be adapted for different stages of orthodontic treatment (initial alignment, working phases, etc.), depending on treatment plan. Archwires generally are swapped over time to match treatment progress.

  • Material & Force Application: As with typical archwires, the wire delivers controlled forces via brackets to guide teeth into desired positions — the backbone mechanism of fixed orthodontic braces.

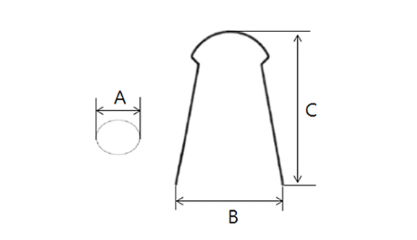

M-Arch (Round type)

M-Arch (Round type)

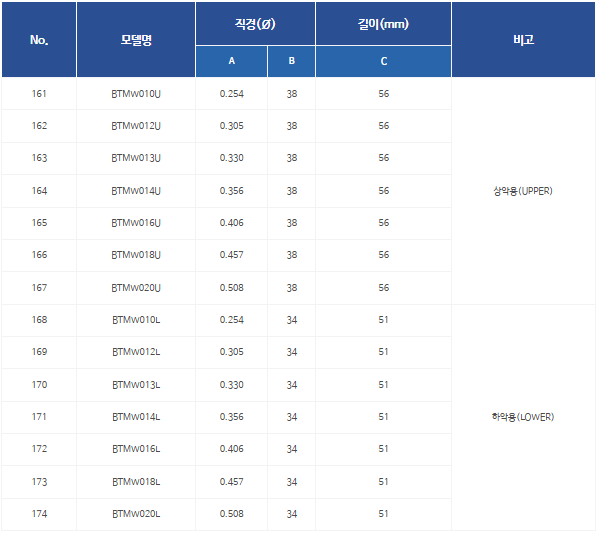

BTMW Table
No. Model Name Diameter (Ø) Length (mm) Remarks
A B C
161BTMW010U0.2543856For Jaw (UPPER)
162BTMW012U0.3053856
163BTMW013U0.333856
164BTMW014U0.3563856
165BTMW016U0.4063856
166BTMW018U0.4573856
167BTMW020U0.5083856
168BTMW010L0.2543451For Jaw (LOWER)
169BTMW012L0.3053451
170BTMW013L0.333451
171BTMW014L0.3563451
172BTMW016L0.4063451
173BTMW018L0.4573451
174BTMW020L0.5083451

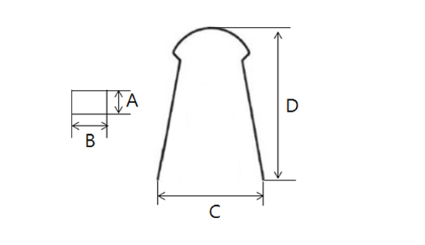

M-Arch (Round type)

M-Arch (Round type)

BTMW Multi-Diameter Table
No. Model Name Diameter (Ø) Length (mm) Notes
A B C D
175BTMW014025U0.3560.6353856For Jaw (UPPER)
176BTMW016016U0.4060.4063856
177BTMW016022U0.4060.5593856
178BTMW016025U0.4060.6353856
179BTMW017017U0.4320.4323856
180BTMW017022U0.4320.5593856
181BTMW017025U0.4320.6353856
182BTMW018025U0.4570.6353856
183BTMW019025U0.4830.6353856
184BTMW020020U0.5080.5083856
185BTMW021025U0.5330.6353856
186BTMW014025L0.3560.6353451For Jaw(LOWER)
187BTMW016016L0.4060.4063451
188BTMW016022L0.4060.5593451
189BTMW016025L0.4060.6353451
190BTMW017017L0.4320.4323451
191BTMW017022L0.4320.5593451
192BTMW017025L0.4320.6353451
193BTMW018025L0.4570.6353451
194BTMW019025L0.4830.6353451
195BTMW020020L0.5080.5083451
196BTMW021025L0.5330.6353451
