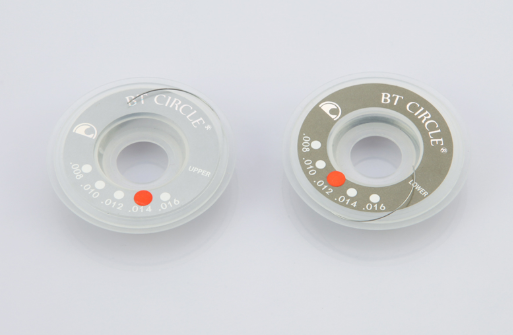

BT CIRCLE WIRE – ARCH

BT Circle Wire is an orthodontic arch‑wire used in braces — part of the system that applies controlled force to gradually move teeth into alignment. It appears under Ni‑Ti (nickel‑titanium) wire type (sometimes listed as “Tiggle Ni‑Ti Wire” for BT Circle Wire).

  • Flexible / shape‑memory alloy (Ni‑Ti): As a Ni‑Ti archwire, BT Circle Wire likely offers a gentle, consistent force with elasticity that helps align teeth gradually good for early stages of orthodontic treatment.

  • Suitable for alignment / leveling phases: Archwires like these are typically used for the initial phase of braces treatment, when teeth are crowded or misaligned, requiring gentle, continuous force rather than high rigidity.

  • Formable to arch shape: As with other archwires, it can be pre‑shaped or adapted to fit the patient’s dental arch, helping guide teeth along the intended arch form.

  • Corrosion‑resistant / medically compatible material: Orthodontic archwires (including Ni‑Ti wires) are designed to be biocompatible and resistant to corrosion and fatigue under the oral environment.

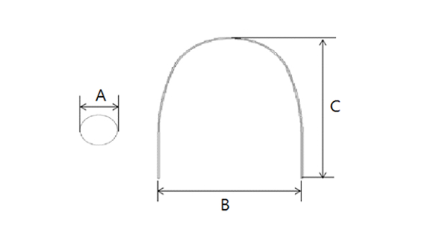

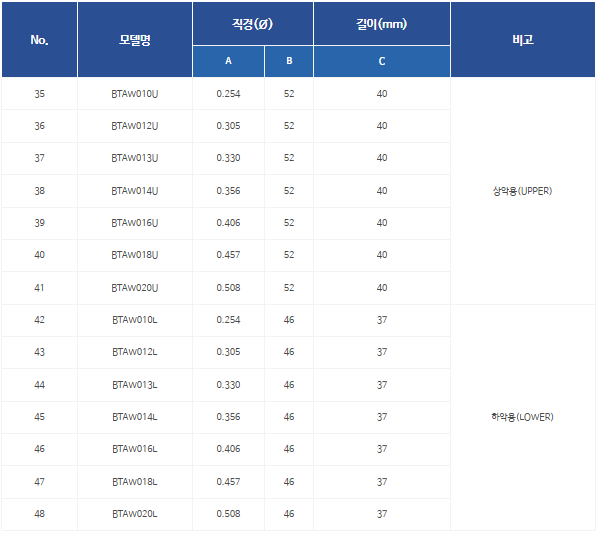

Arch (Round type)

Specifications

Table Replica
No. Model Name Diameter (Ø) Length (mm) Note
A B C
35 BTAW010U 0.254 52 40 For Jaw (UPPER)
36 BTAW012U 0.305 52 40
37 BTAW013U 0.33 52 40
38 BTAW014U 0.356 52 40
39 BTAW016U 0.406 52 40
40 BTAW018U 0.457 52 40
41 BTAW020U 0.508 52 40
42 BTAW010L 0.254 46 37 For Jaw (LOWER)
43 BTAW012L 0.305 46 37
44 BTAW013L 0.33 46 37
45 BTAW014L 0.356 46 37
46 BTAW016L 0.406 46 37
47 BTAW018L 0.457 46 37
48 BTAW020L 0.508 46 37

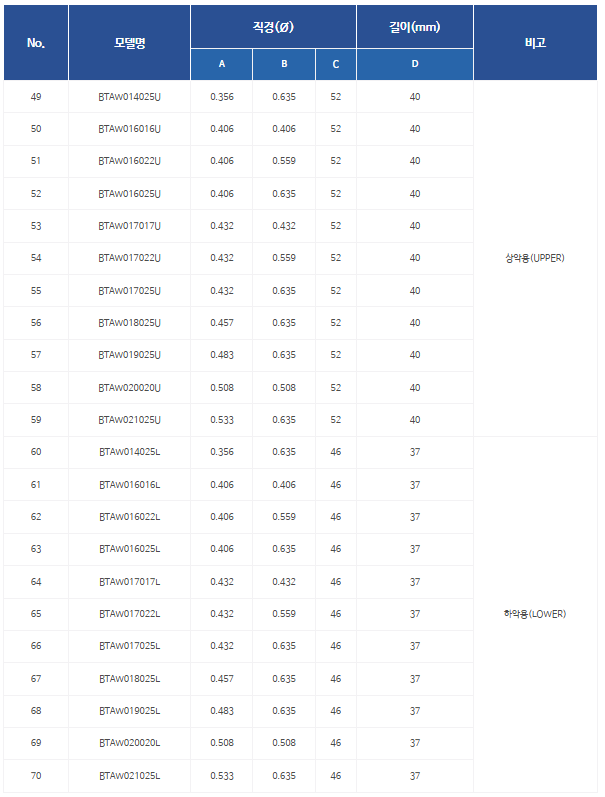

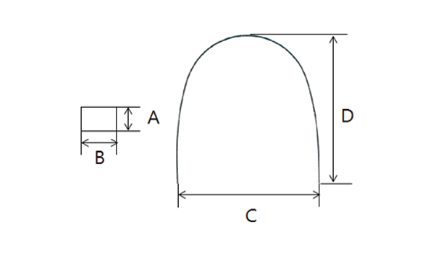

Arch (Rect type)

Specifications

Table Replica 2
No. Model Name Diameter (Ø) Length (mm) Note
A B C D
49 BTAW014025U 0.356 0.635 52 40 For Jaw (UPPER)
50 BTAW016016U 0.406 0.406 52 40
51 BTAW016022U 0.406 0.559 52 40
52 BTAW016025U 0.406 0.635 52 40
53 BTAW017017U 0.432 0.432 52 40
54 BTAW017022U 0.432 0.559 52 40
55 BTAW017025U 0.432 0.635 52 40
56 BTAW018025U 0.457 0.635 52 40
57 BTAW019025U 0.483 0.635 52 40
58 BTAW020020U 0.508 0.508 52 40
59 BTAW021025U 0.533 0.635 52 40
60 BTAW014025L 0.356 0.635 46 37 For Jaw (LOWER)
61 BTAW016016L 0.406 0.406 46 37
62 BTAW016022L 0.406 0.559 46 37
63 BTAW016025L 0.406 0.635 46 37
64 BTAW017017L 0.432 0.432 46 37
65 BTAW017022L 0.432 0.559 46 37
66 BTAW017025L 0.432 0.635 46 37
67 BTAW018025L 0.457 0.635 46 37
68 BTAW019025L 0.483 0.635 46 37
69 BTAW020020L 0.508 0.508 46 37
70 BTAW021025L 0.533 0.635 46 37
