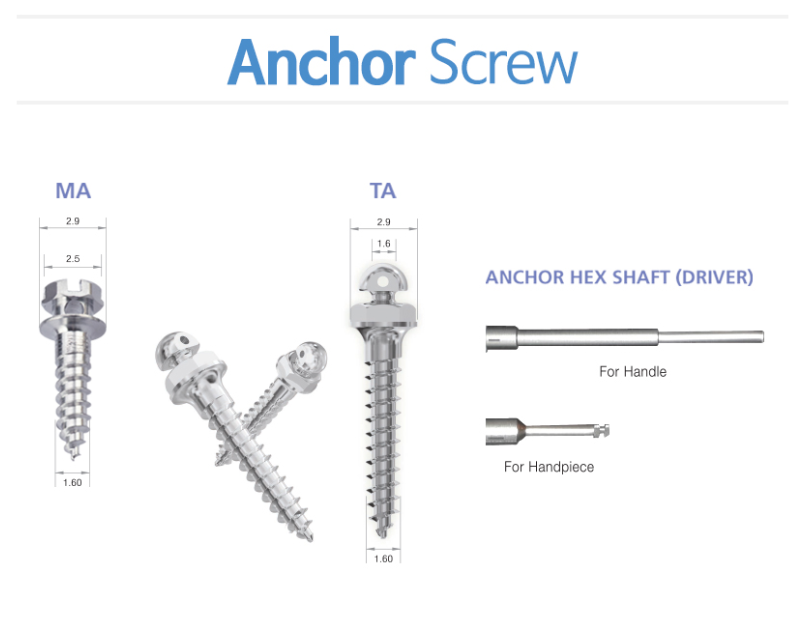

Anchor Screw

Screw for orthodontic treatment Biocompatible Titanium material
Smooth and round head design for minimized feeling of irritation

  •  Variable sizes for different dentine thickness of patients
  •  Easy to install connection device due to head part
  •  Self tapping type
  •  Both of round and rectangular wire are applicable
  •  Micro Thread

Self Drilling & Self Tapping

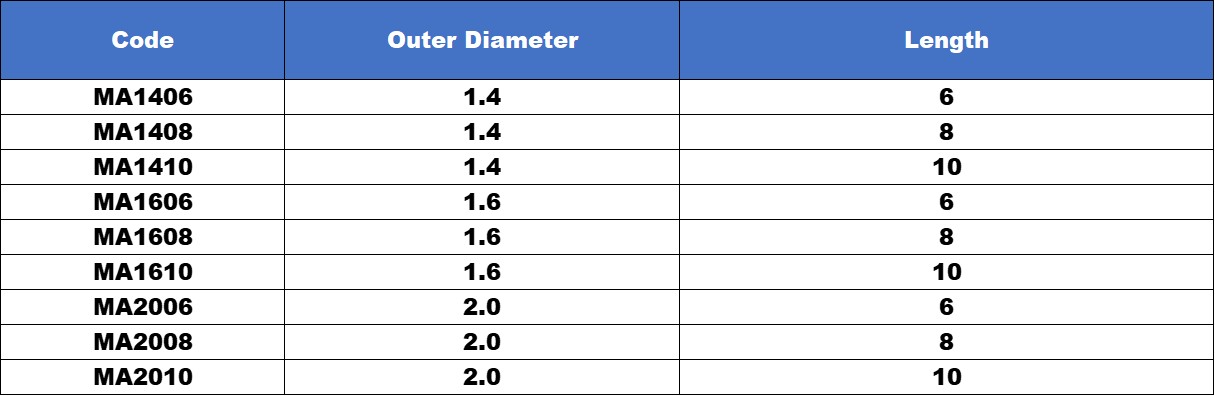

MA Series Table
Code Outer Diameter Length
MA14061.46
MA14081.48
MA14101.410
MA16061.66
MA16081.68
MA16101.610
MA200626
MA200828
MA2010210

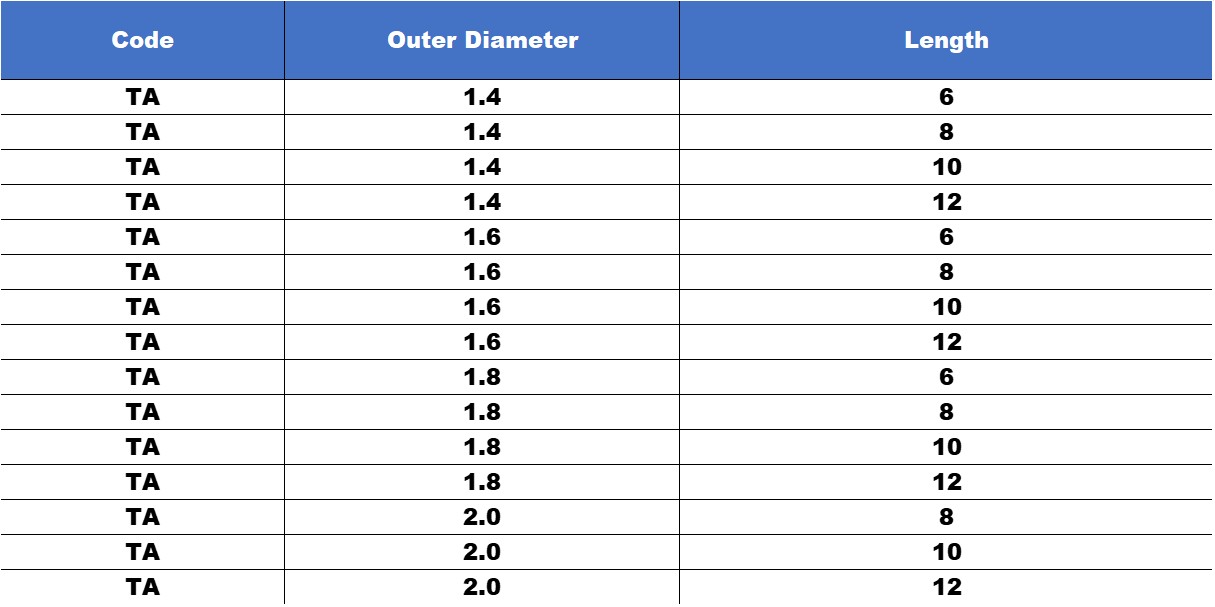

Self Drilling & Self Tapping

Specification Table
Code Outer Diameter Length
TA14061.46
TA14081.48
TA14101.410
TA16061.66
TA16081.68
TA16101.610
TA200626
TA200828
TA2010210

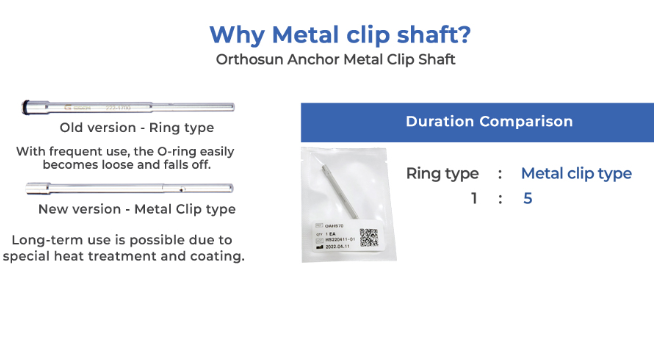

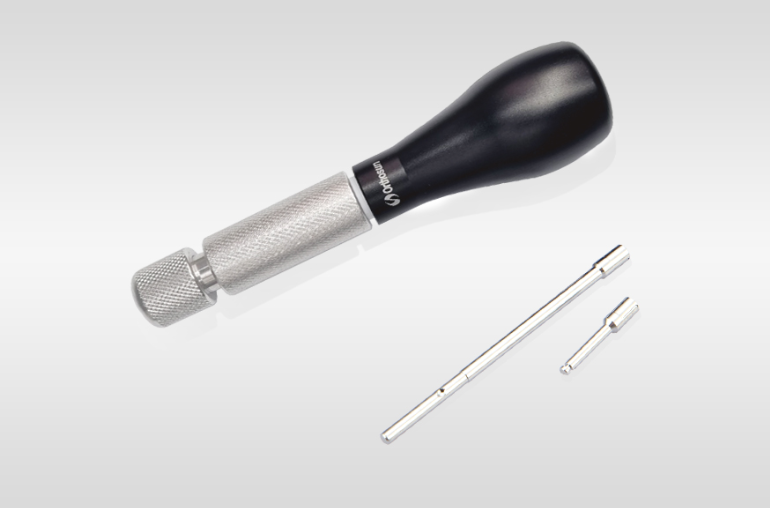

The Anchor Shaft

Specification Table
Code (Length mm) Connector
OAHS70 70 For Handle
OAHS20 20 For Handpiece
